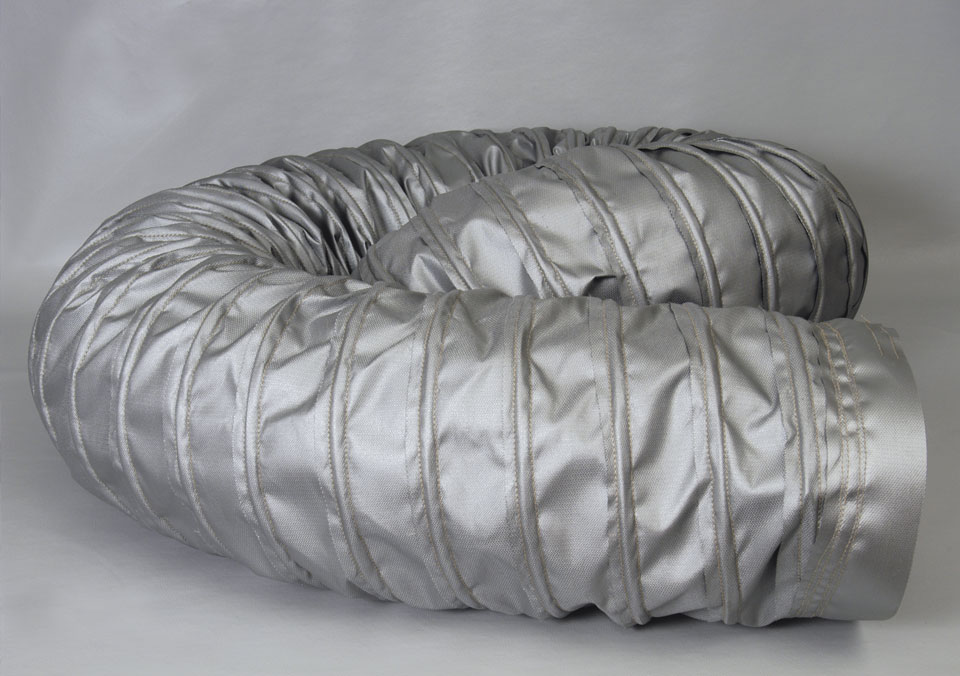

Enviroduct Extreme

Iron-oxide Coated Ducting on Fiberglass Substrate

Extreme Heat is made of sewn construction iron-oxide coated fabric on fiberglass substrate with steel wire helix. Constructed to withstand the effects of prolonged heat subjection, this product is ideal for high-heat applications.

*Not recommended for aircraft ground support applications

Specs

  • Fabric Weight: 24 oz/yd² (814 g/m²)
  • Temperature Range: -65 to 900 F (-54 to 482 C) Intermittent to 1,500 F (816 C)
  • Wire: Hard-Drawn Steel
  • Length: 15′ (4.5 m), 25′ (7.5 m)
  • Color: Deep Red
  • Standard Pitch:
    • 3″ (7.5 cm) for 6″ and 7″ (150 and 200 mm) diameters
    • 4″ (10 cm) for 8″ (200 mm) and larger diameters
  • Standard End Finish: Soft Cuff
  • Inside Diameter: 6″ – 36″ (150 – 900 mm)

IMAGE GALLERY

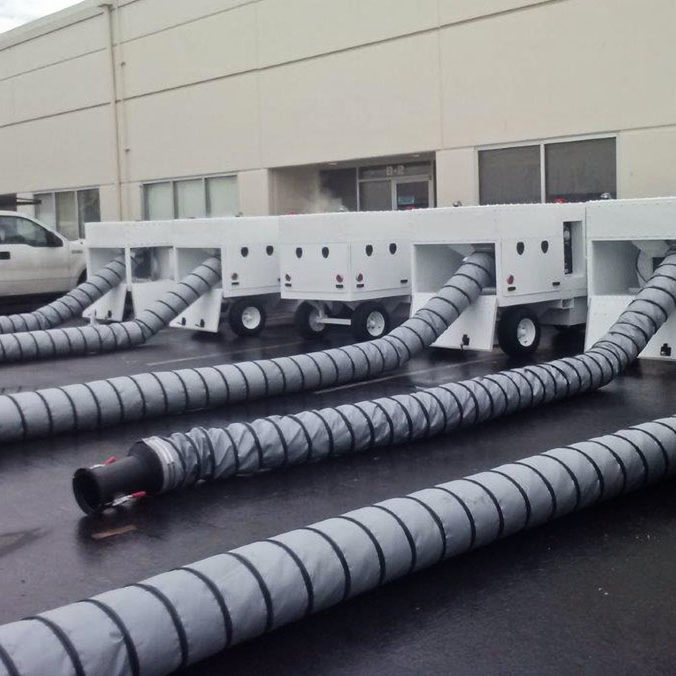

Enviroduct Extreme
